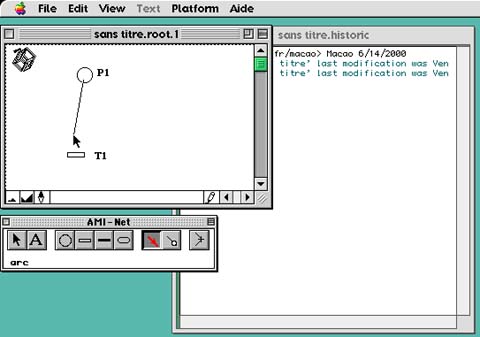

Once you have two objects, you may connect them. To do so, select the connector class you want to add (a Petri net arc on the Figure below). You then drag it from the starting node to the ending node.

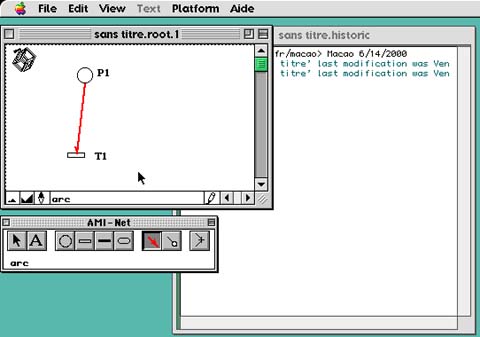

A node that respects connectability rules flashes in red when you pass your mouse pointer onto it (Macao is able to prevent designers to connect some nodes between them). Just release the button on the ending node to create a new connector instance.

The procedure to edit a connector attribute is the one already presented for node (see step below). You may also use all the edit facilities to arrange your graph.
