Introduction
The aim of this tool is to compute a linear charaterization of the reachability
set. Results are split up into invariants and properties. Invariants can
be used for any initial marking, provided that the constant in the contraints
are modified according to the new initial marking. On the other hand,
properties are (usually) dependant of the initial marking.
The current version computes the convex envelop of the reachability set.
The Linear Characterization menu
When the Place/Transition net you have designed is syntactically correct,
you can reach the service (in red).
Invariants
|
|
Colored invariants
|
|
P-invariants
|
|
T-invariants
|
|
P-invariants by unfolding
|
|
Linear characterization (verbose)
|
|
Linear characterization
|
Display of Results
Here is a small example of Prefix output. First, we consider this small
example model below.
A small Petri net example.

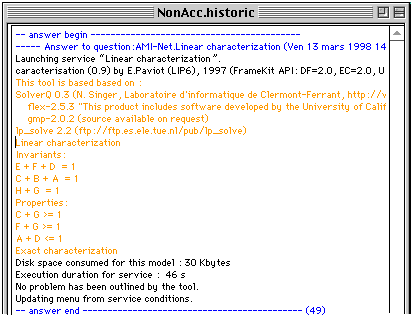

The linear caracterization (quiet mode) of this model is displayed in
the historic window, has shown below.
Linear characterization of the example.
The first three properties correspond to place invariuants. The fourth
one expresses that place G is always marked when place D is not. The fifth
one expresses a similar condition between F and G. Finally, the sixth
one signals that places A and D can never be marked together. The "Exact
caracetrization" sentence indicates that the computed invariants and properties
exactly describe the reachability set.
|
